Schulz Refrigerated Air Dryer For Air Compressor
, Compressed Air Systems, 35 Cfm. Good For 7.5hp & 10hp Compressors (stand Alone Dryer)
USD $1,409.99
Condition : NEW
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
- NEW 35 CFM SCHULZ NON-CYCLING REFRIGERATED AIR DRYER 115V, SINGLE PHASE
- PLEASE NOTE: THIS IS FOR THE DRYER ONLY. A MINIMUM OF A 1 MICRON FILTER MUST BE USED BEFORE THIS REFRIGERATED AIR DRYER AS PER THE MANUFACTURERS WARRANTY. SEE LOWER DESCRIPTION FOR DETAILS

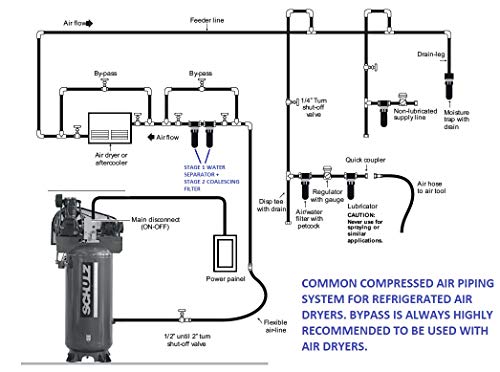

- ITS VITAL THAT WATER & OIL ARE REMOVED FROM THE PIPING BEFORE HITTING THE DRYER. PLEASE SELECT OPTION " WITH PRE-FILTER" FOR A COMPLETE KIT THAT INCLUDES THE DRYER, PLUS STAGE 1 WATER SEPARATOR + A STAGE 2 COALESCING FILTER FOR OIL. BY SELECTING OPTION " REGULATOR PRE-FILTER " YOU WILL RECEIVE A STAGE 1 WATER SEPARATOR REGULATOR THAT ADJUSTS 7 - 175 PSI + A STAGE 2 COALESCING FILTER TO REMOVE RESIDUAL OIL
- 35 CFM @ 100 PSI / 1/2" FEMALE NPT INLET & OUTLET / REFRIGERANT FLUID TYPE: R134a / WIRE SIZE REQUIRED: 10 GAUGE / DEW POINT: 41 DEGREES FAHRENHEIT AT 100 PSI
- 220 PSI MAX INLET / DIMENSIONS IN INCHES: ( HEIGHT 18.75" ) ( WIDTH 15" ) (LENGTH/DEPTH 20.25") / 62 LBS
- Color: Blue
- Weight: 62
